Area capture mode captures video from an area on the screen. In this mode, you can also capture audio and camera as an overlay.

To capture an area, select a rectangular area, a window or choose to capture around mouse pointer.

  1. From the application window, click Area button under Mode section.
  2. Click Select button under Source section to open area selector.
  3. Choose the area to record from area selector. Optionally, use the toolbox on the top to choose the type of area.
  4. Click OK to close the selector.

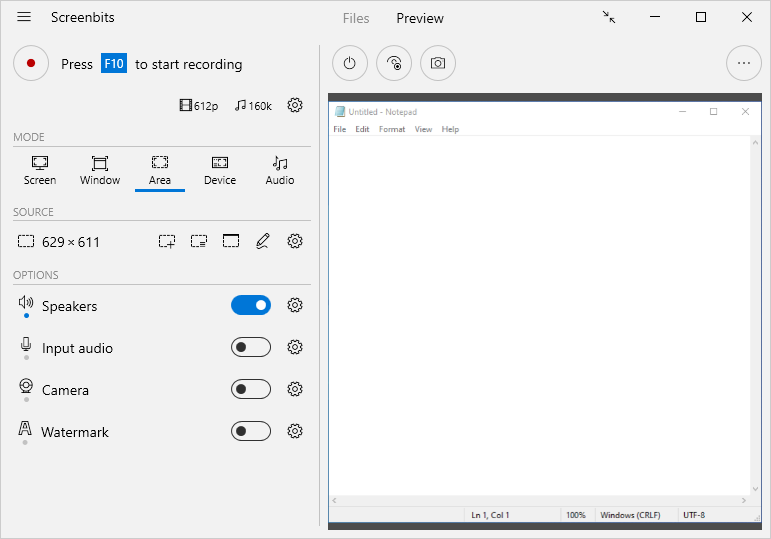

Figure 1: Area Capture


You can change related screen and pointer options from screen options.


In area capture mode, you can use a resizable and moveable frame to choose the capture area. To open the frame, click Frame button under Source section.

Figure 2: Frame
